Technical Parameter






<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>APG-S2 Clamp (self-locked)</i></div>




APG-S2 Clamp (self-locked)



Working pressure：0.3-0.8MPa

Clamping force（ under 0.6Mpa）：1000N

Operating temperature：Common temperature:-20-60℃

High temperature：-20-200℃

Locking/opening tim：0.2s

Weight：1kg

Max blank thickness：3mm

Self-locking function ：Yes

Cylinder joint size：2-G1/8

Application：Large forcing clamp, used for high requirement of the blanks, could be adjusted the angles through the sensor, widely application,Worked at transfer and feeder mode.

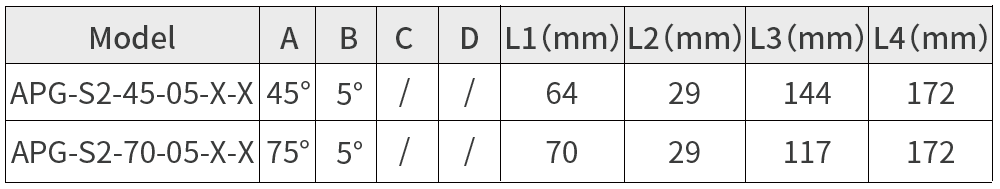

Specifications
