Technical Parameter






<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>APG-SL2 Clamp (self-locked)</i></div>




APG-SL2 Clamp (self-locked)



Working pressure：0.3-0.8MPa

Clamping force（ under 0.6Mpa）：1000N

Operating temperature：Normal temperature: -20-60℃

High temperature：-20~200℃

Locking/opening：0.2s

Weight：1kg

Max. blank thickness：3mm

Self-locking function：Yes

Cylinder joint size：2-G1/8

Application：Large forced clamp, suitable for long distance large flap blank. Due to the long clamp arm, adequate clearance space should be considered during operation.

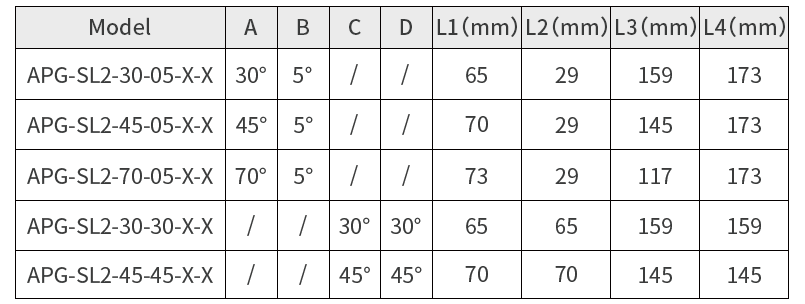

Specification
