Technical Parameter






<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>APGL-S1 Clamp (self locked)</i></div>




APGL-S1 Clamp (self locked)



Working pressure： 0.3-0.8MPa

Clamping force（ under 0.6Mpa）： 500N

Operating temperature: Normal temperature:：-20-60℃

High temperature：-20~200℃

Locking/opening： 0.2s

Weight： 0.59kg

Max. blank thickness ：3mm

Self-locking function：Yes

Cylinder joint size： 2-G1/8

Applications:：Quick clamp, for flat blank, high frequency conditions, with compact design, fast action and lightweight

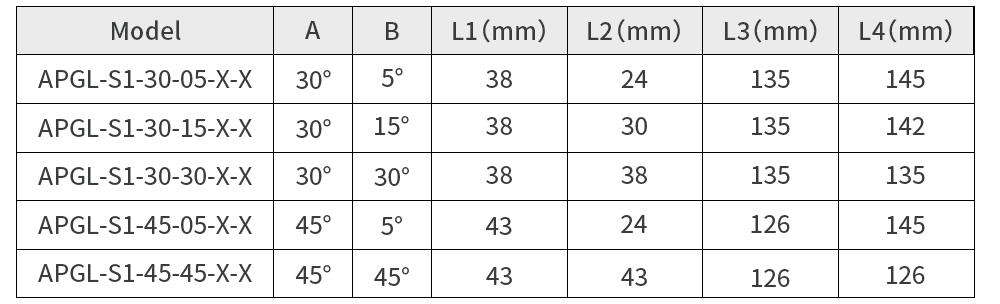

Specification
