<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PET-160</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PET-160 parallel gripper

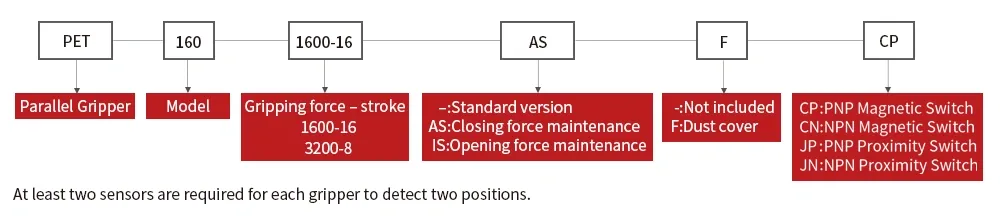

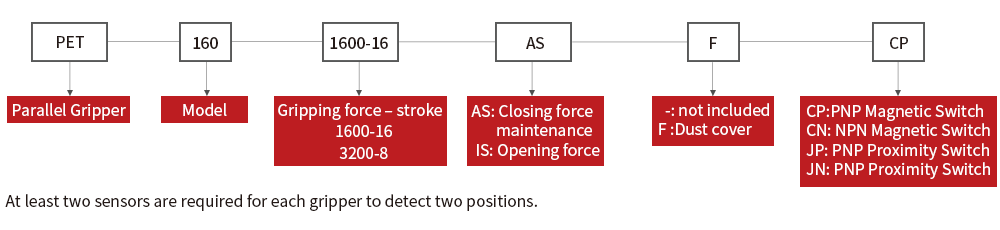

SELECTION

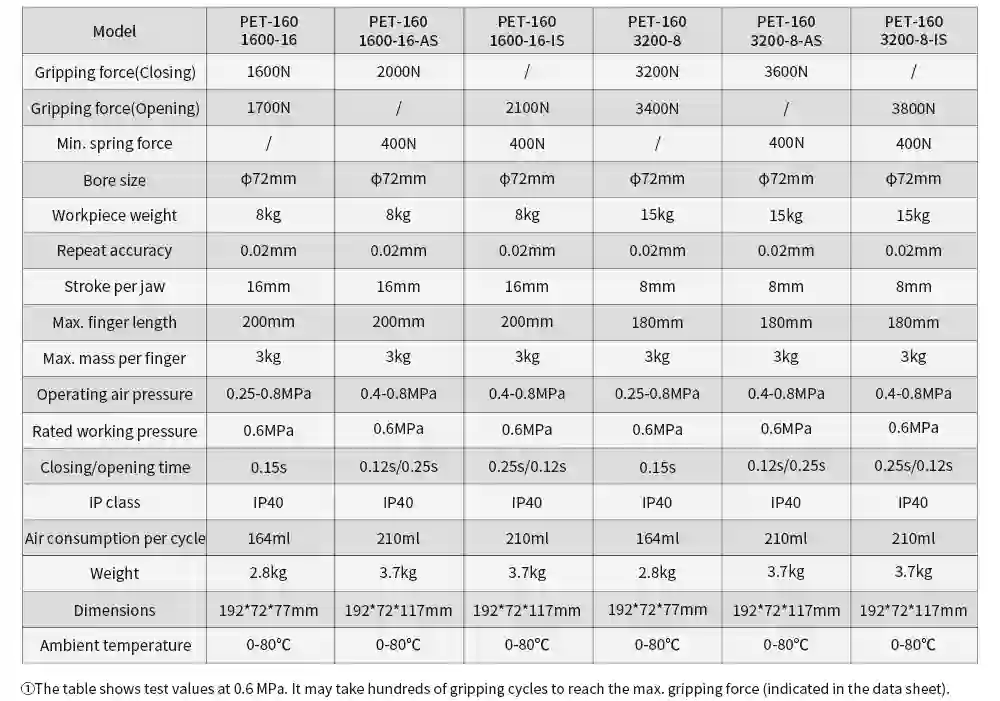

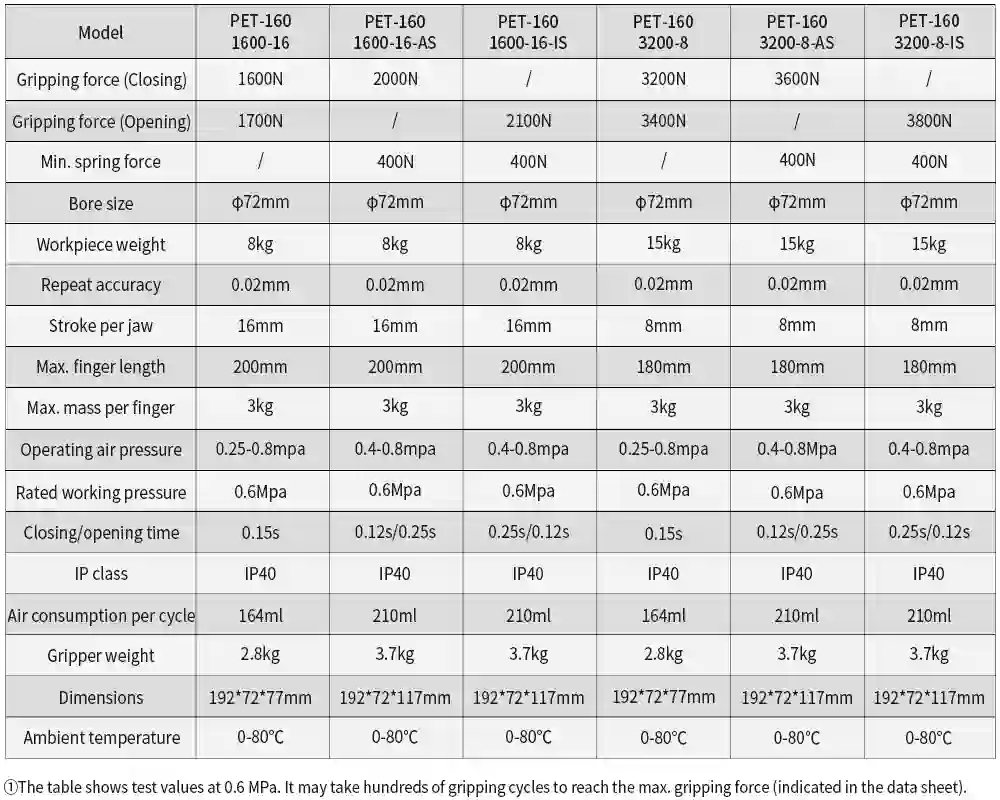

PRODUCT PARAMETERS



Gripping force (Closing)：1600N/3600N

Gripping force (Opening)：1700N/3800N

Stroke per jaw：16mm/8mm

Workpiece weight ：8kg~15kg

Specification parameters



①Dustproof device (optional)

②Gripper

③Proximity Switch (Optional PNP/NPN)

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

Parallel gripper
