<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PET-200</i></div>


PRODUCT SHOW

PRODUCT STRUCTURE




PET-200 parallel gripper

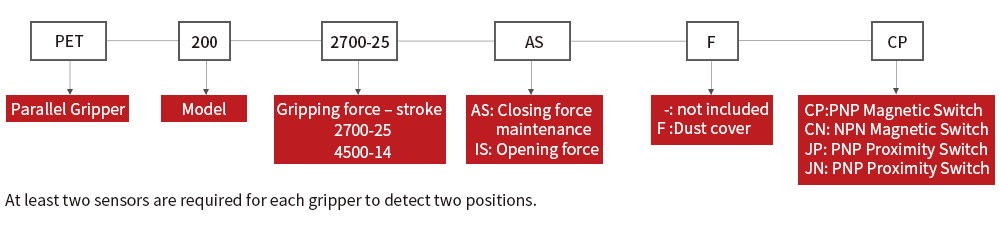

SELECTION

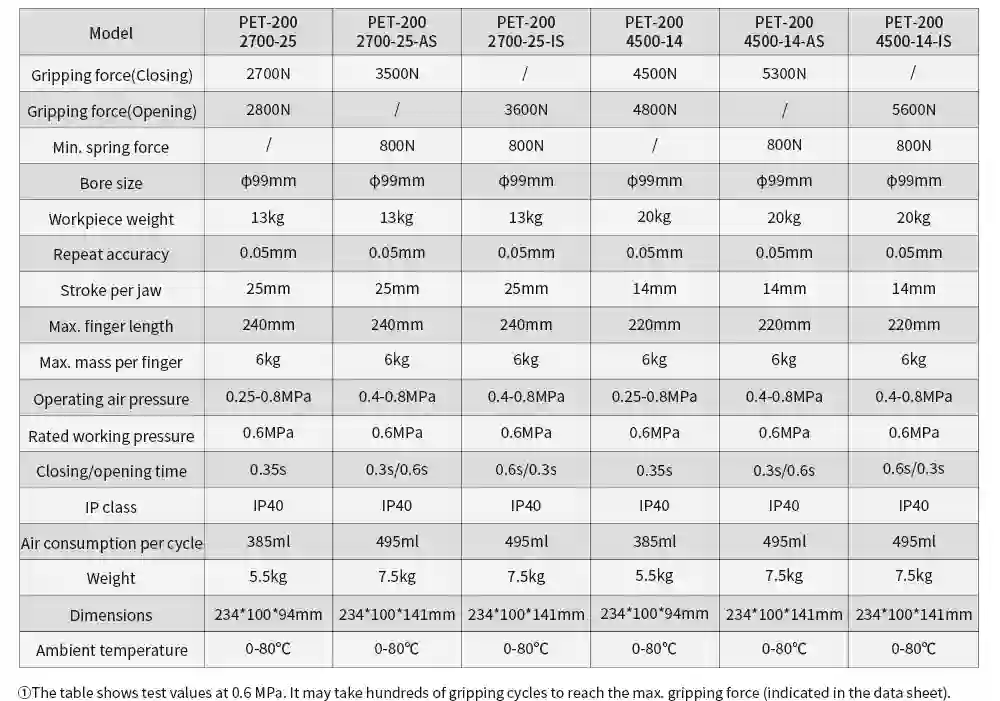

PRODUCT PARAMETERS



Gripping force (Closing)：2700N/5300N

Gripping force (Opening)：2800N/5600N

Stroke per jaw：25mm/14mm

Workpiece weight ：13kg~20kg

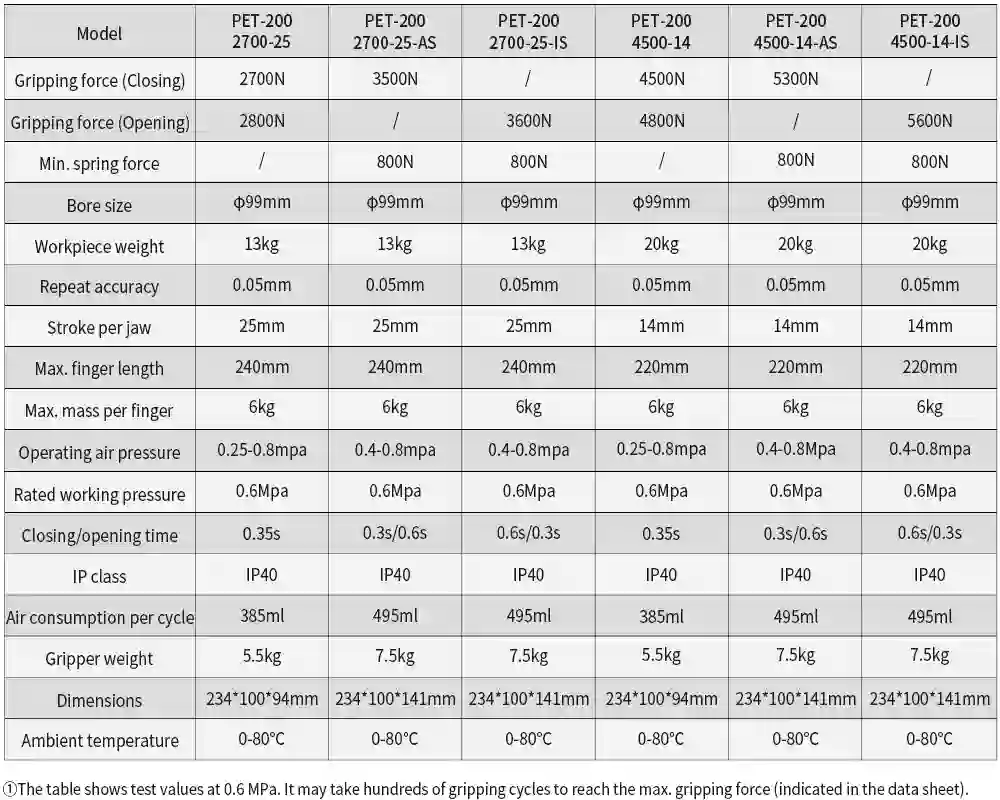

Specification parameters



①Dustproof device (optional)

②Gripper

③Proximity Switch (Optional PNP/NPN)

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

Parallel gripper
