<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PET-300</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PET-300 parallel gripper

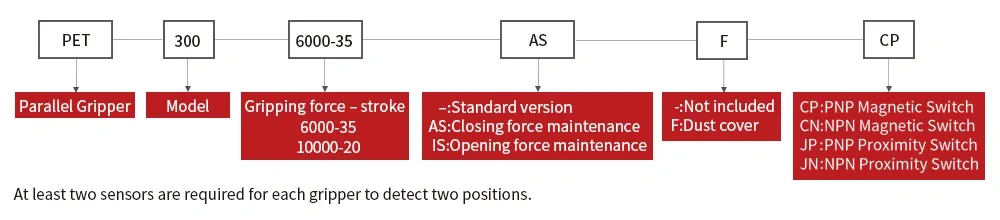

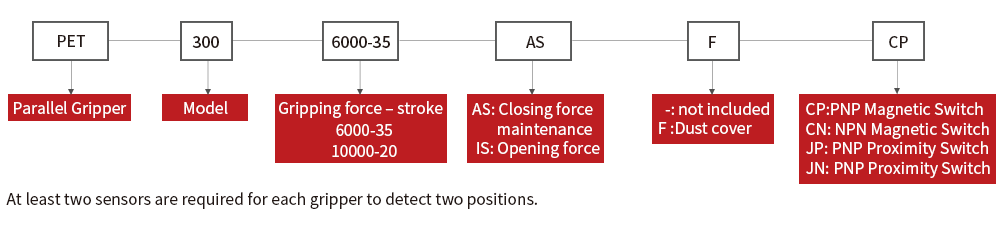

SELECTION





PRODUCT PARAMETERS



Gripping force (Closing)：6000N/11200N

Gripping force (Opening)：6200N/11700N

Stroke per jaw：35mm/17mm

Workpiece weight ：30kg~50kg

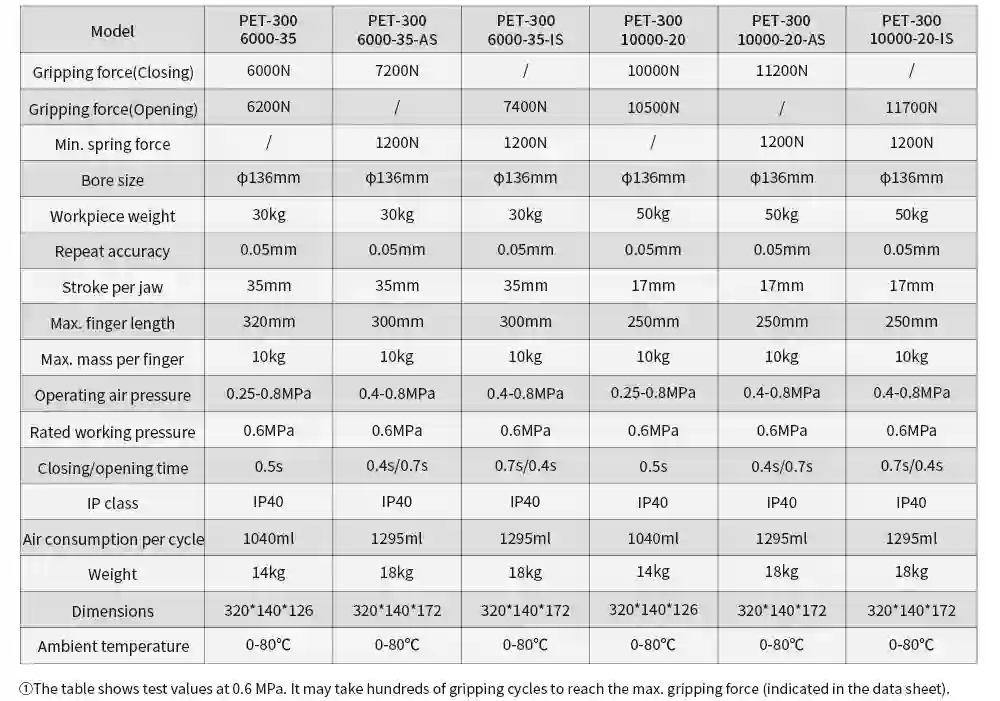

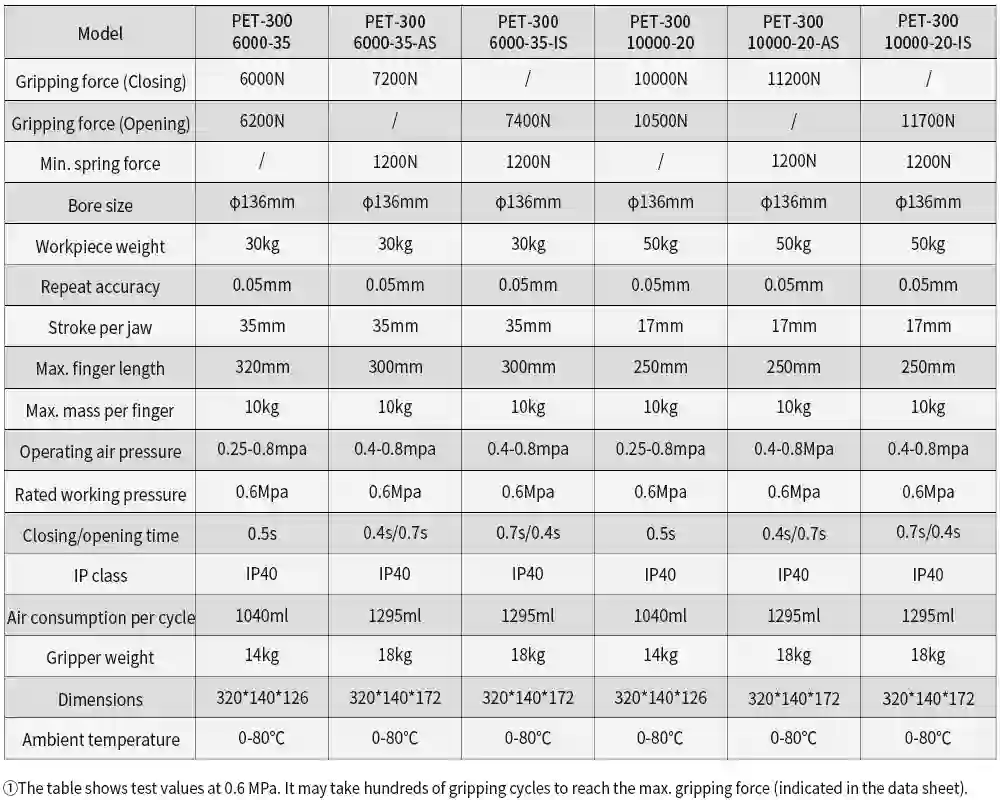

Specification parameters



①Dustproof device (optional)

②Gripper

③Proximity Switch (Optional PNP/NPN)

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

Parallel gripper
