<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PET-64</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PET-64 parallel gripper

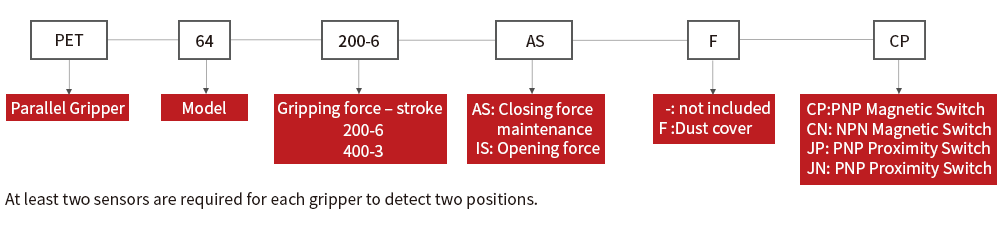

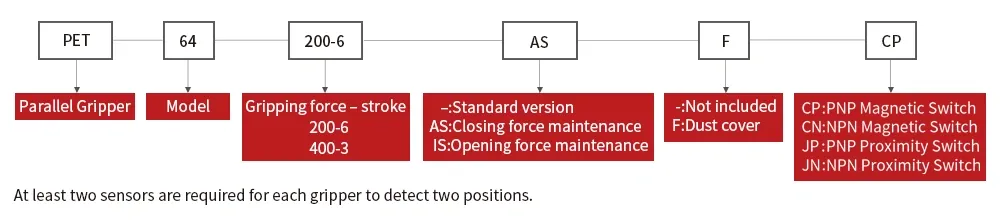

SELECTION

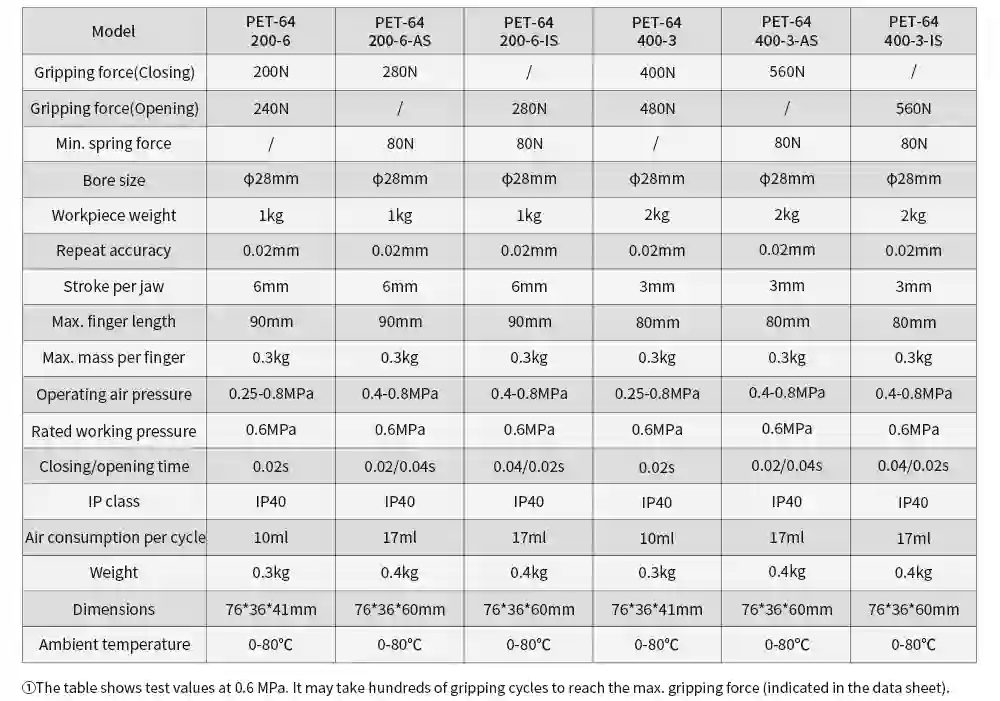

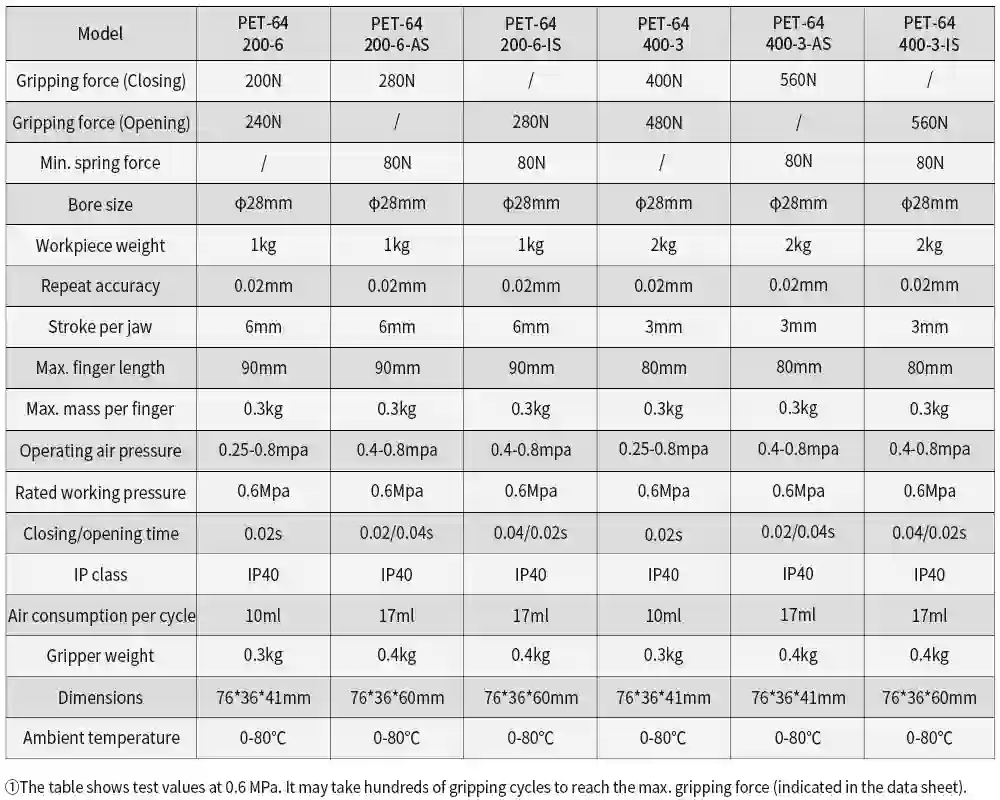

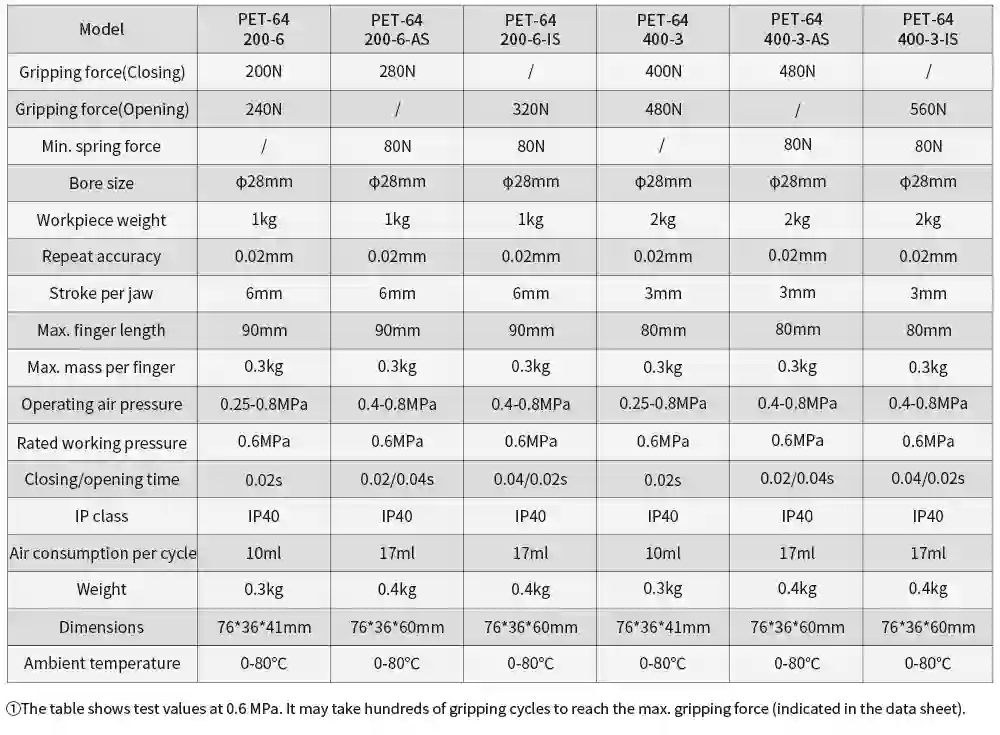

PRODUCT PARAMETERS



Gripping force (Closing)：200N/560N

Gripping force (Opening)：240N/560N

Stroke per jaw：6mm/3mm

Workpiece weight ：1kg~2kg

Specification parameters



①Dustproof device (optional)

②Gripper

③Proximity Switch (Optional PNP/NPN)

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

Parallel gripper
