<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PET-80</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PET-80 parallel gripper

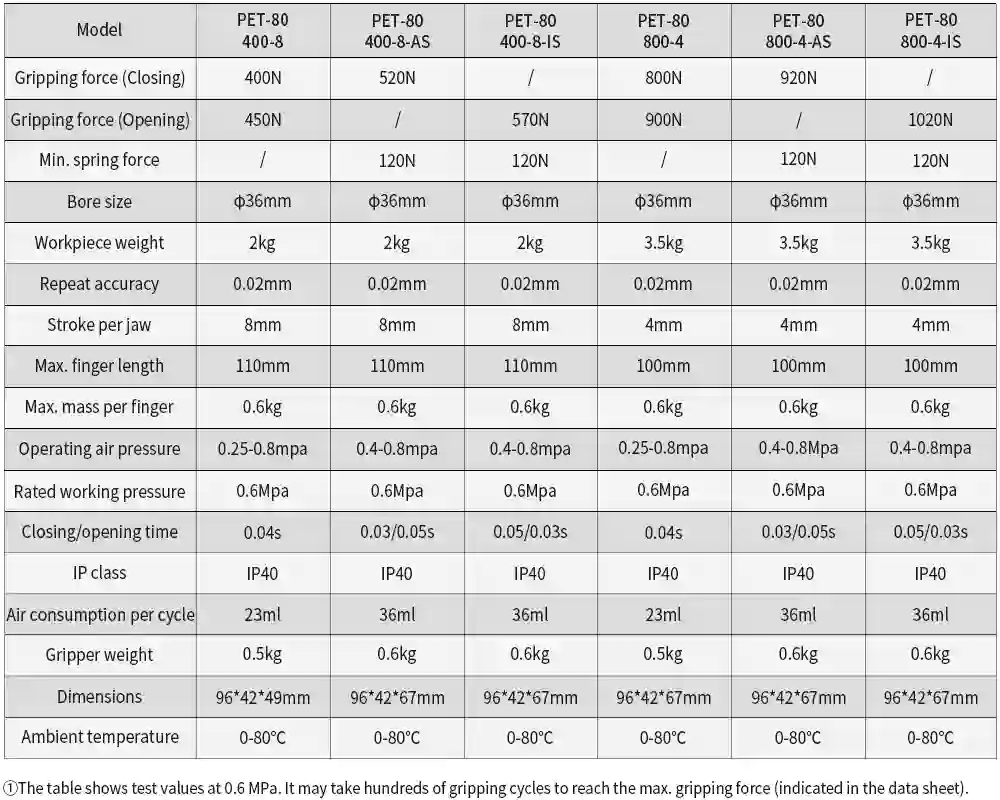

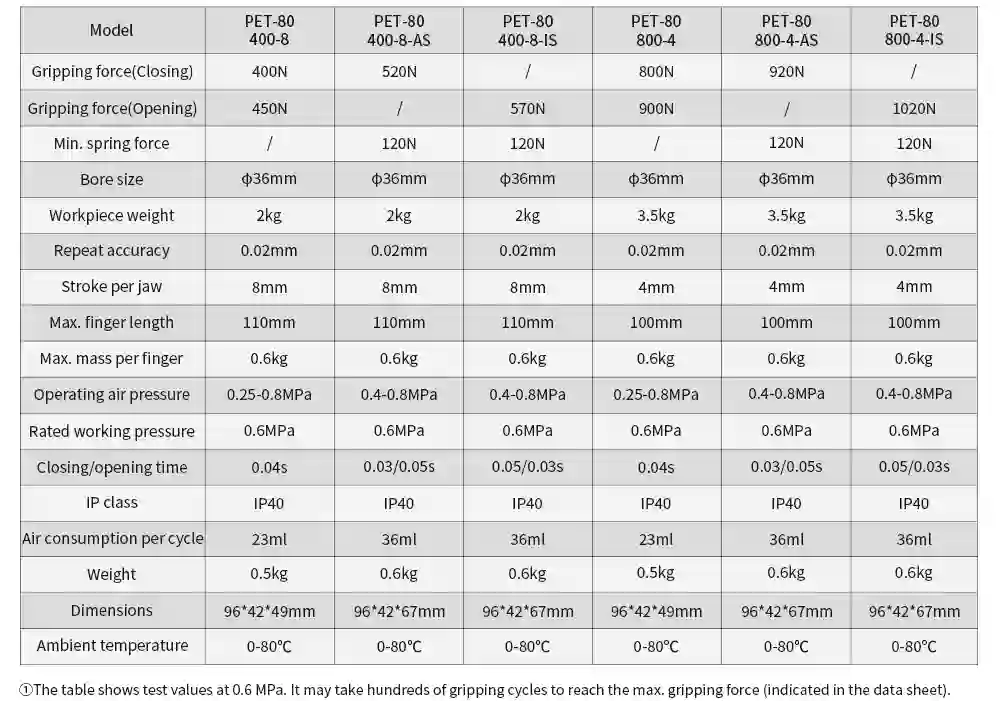

TECHNICAL PARAMETERS

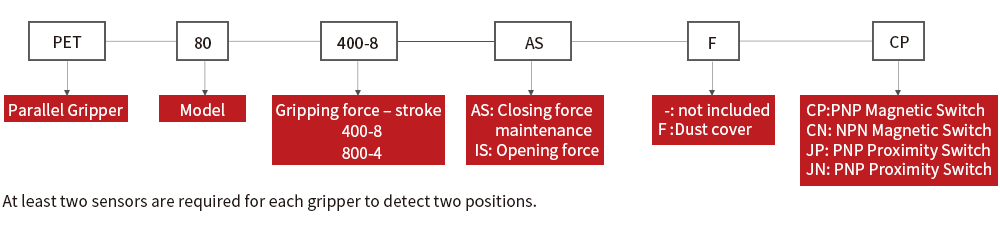

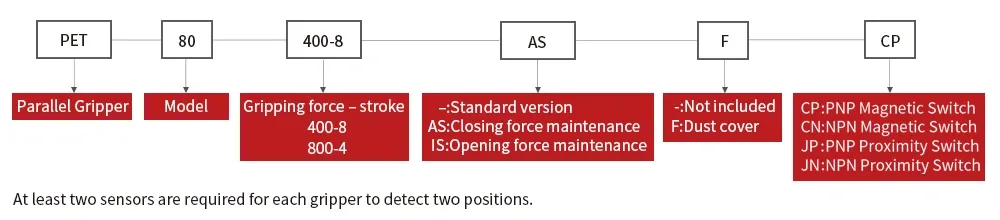

SELECTION





PRODUCT PARAMETERS



Gripping force (Closing)：400N/920N

Gripping force (Opening)：450N/1020N

Stroke per jaw：8mm/4mm

Workpiece weight ：2kg~3.5kg

Specification parameters



①Dustproof device (optional)

②Gripper

③Proximity Switch (Optional PNP/NPN)

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

Parallel gripper
