Name: PST-100 centric grippers
Brand: Aotto

Looking for something else? Contact Aotto and our team will be happy to help.

MESSAGE BOX

Home

About us

News

Partner recruitment

Download

Steel fence

Flexible barrier

 visual security system

Machine guarding

Robotic tool changer

Grippers

Electric Gripper

Clamp

EOAT for stamping

Gripping systems

Stamping industry

Automobile industry

Education industry

Machining industry

Warehousing & logistics industry

Industry solutions







<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>PST-100</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PST-100 centric grippers

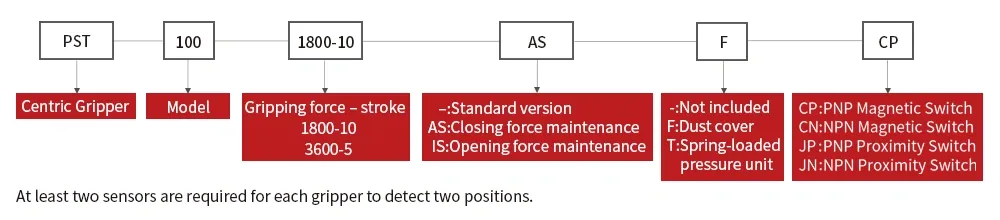

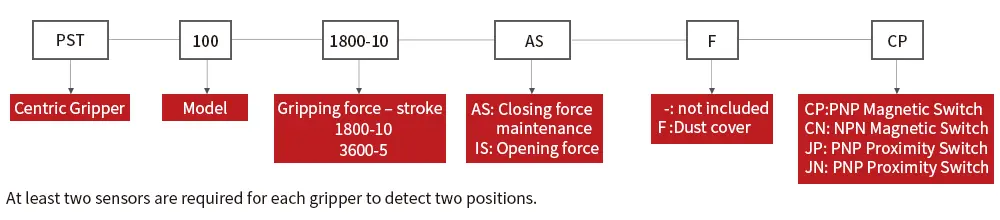

SELECTION

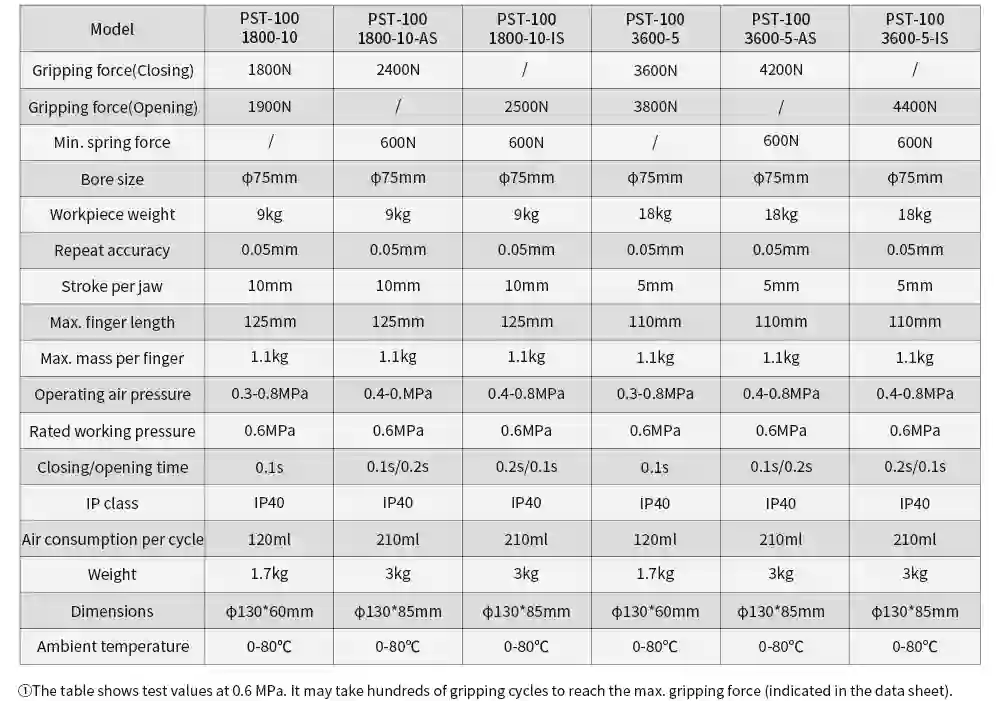

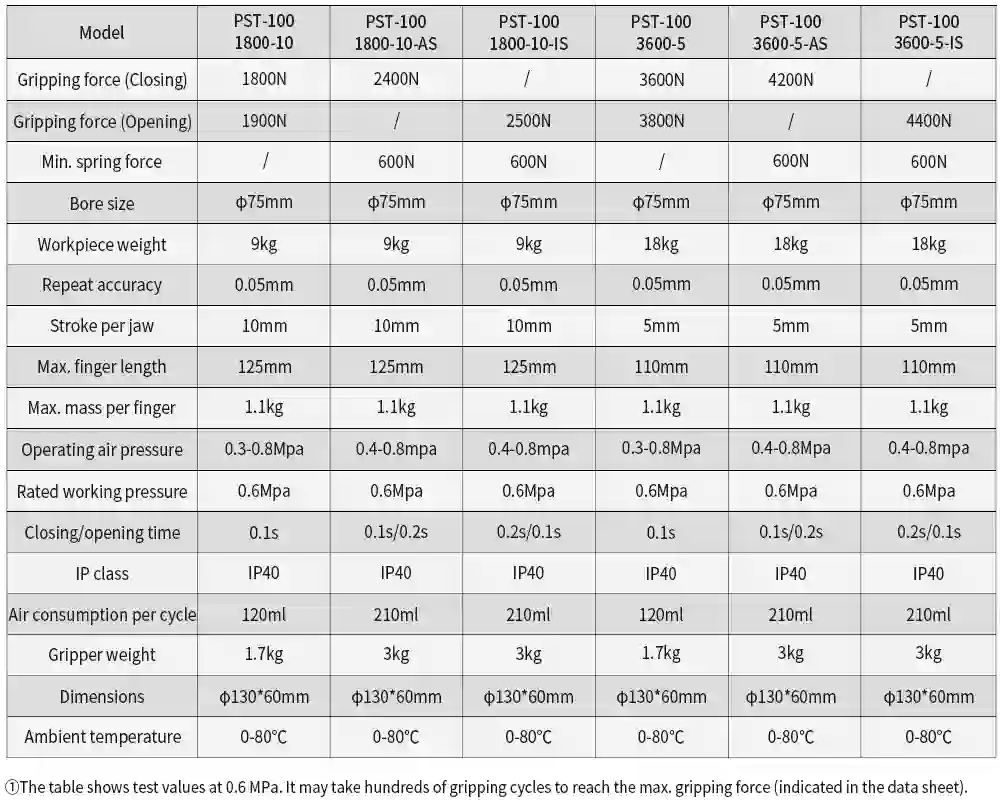

PRODUCT PARAMETERS



Gripping force (Closing)：1800N/4200N

Gripping force (Opening)：1900N/4400N

Stroke per jaw：10mm/5mm

Workpiece weight ：9kg~18kg

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)



Centric grippers
