<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>PST-125</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PST-125 centric grippers

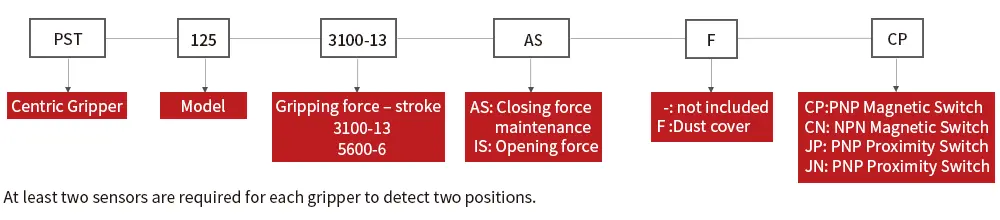

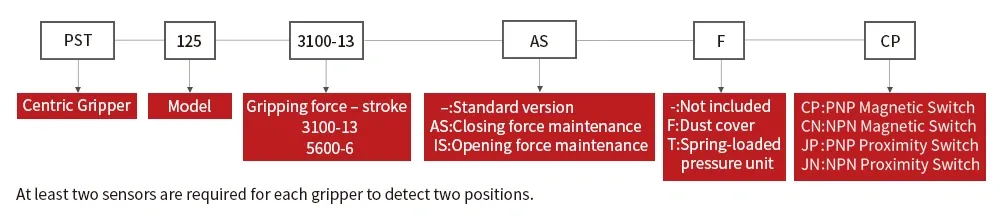

SELECTION

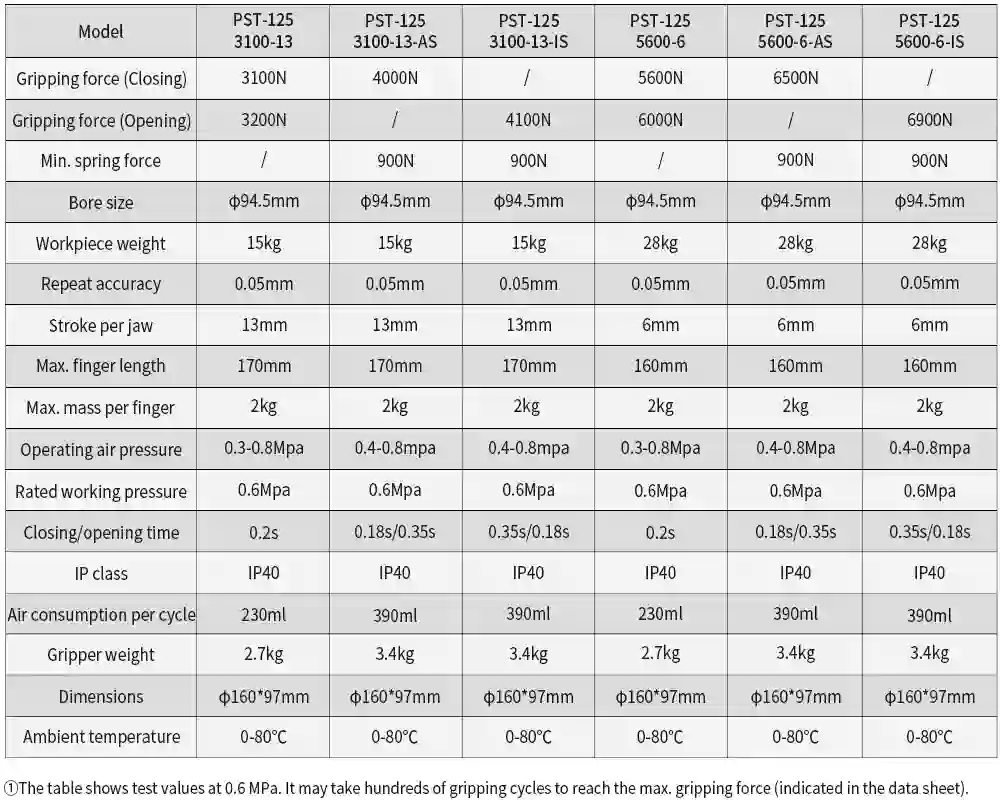

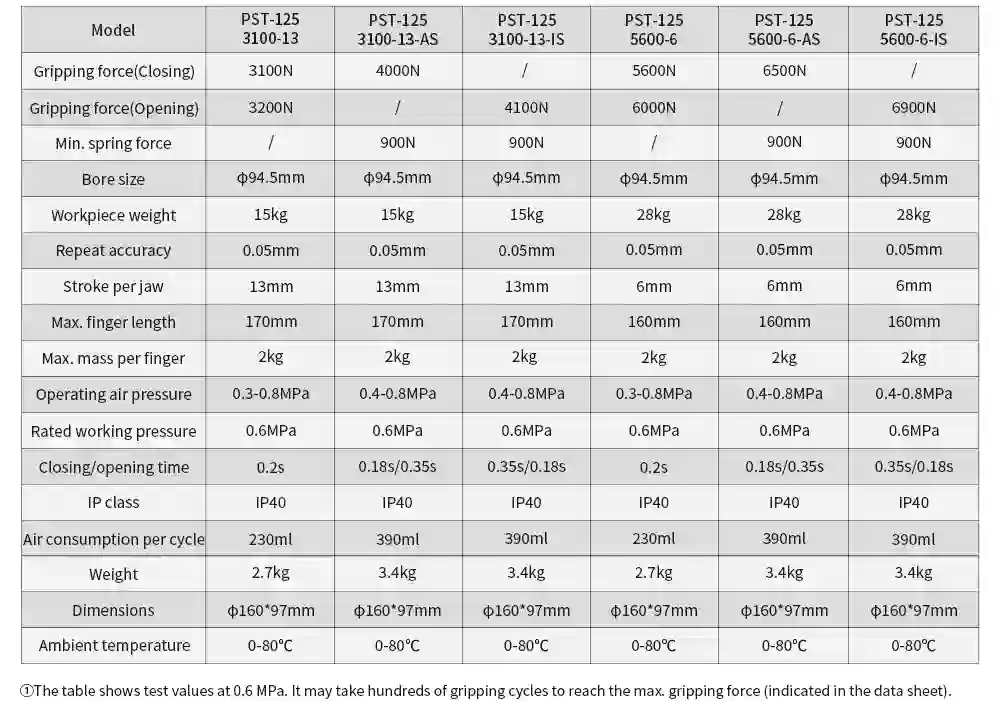

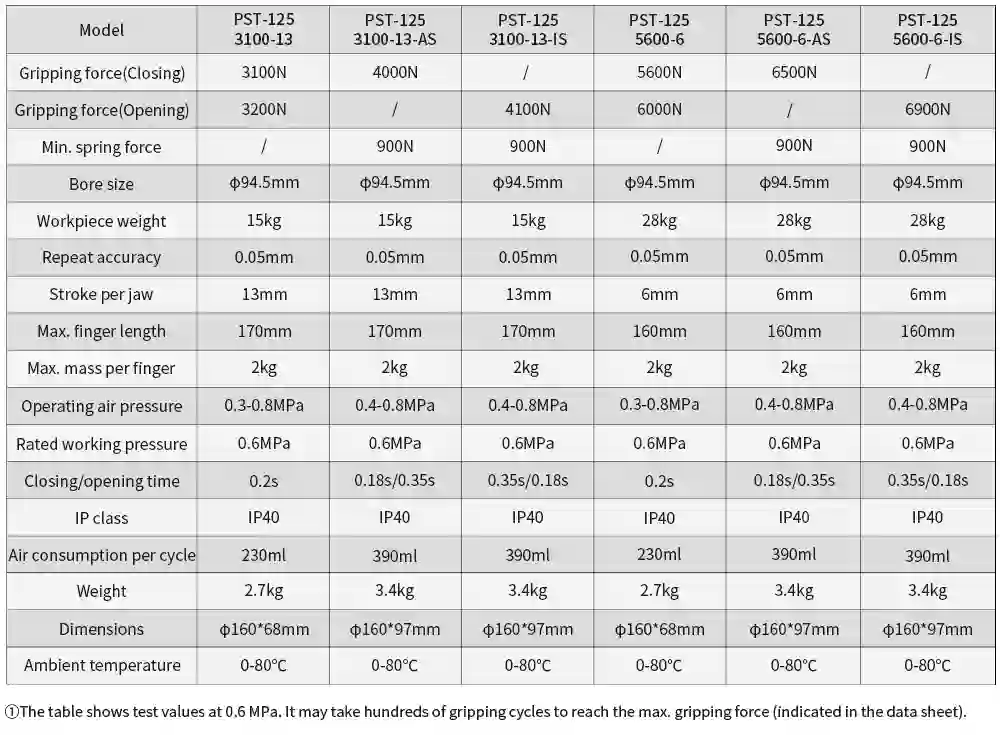

PRODUCT PARAMETERS



Gripping force (Closing)：3100N/6500N

Gripping force (Opening)：3200N/6900N

Stroke per jaw：13mm/6mm

Workpiece weight ：15kg~28kg

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)


Centric grippers
