<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>PST-160</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PST-160 centric grippers

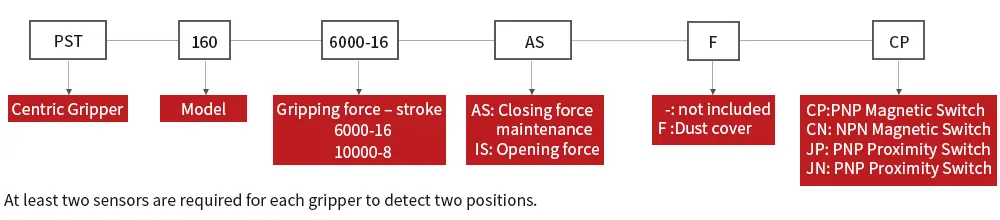

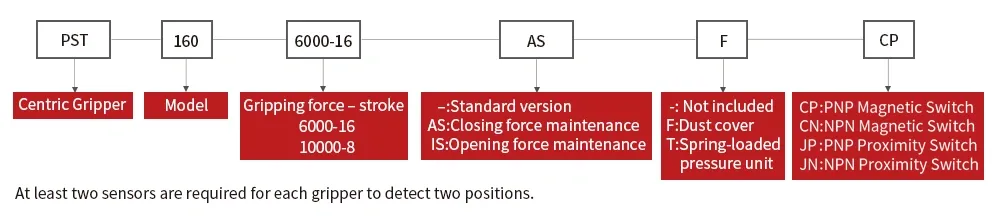

SELECTION





PRODUCT PARAMETERS



Gripping force (Closing)：6000N/11600N

Gripping force (Opening)：6200N/12600N

Stroke per jaw：16mm/8mm

Workpiece weight ：30kg~50kg

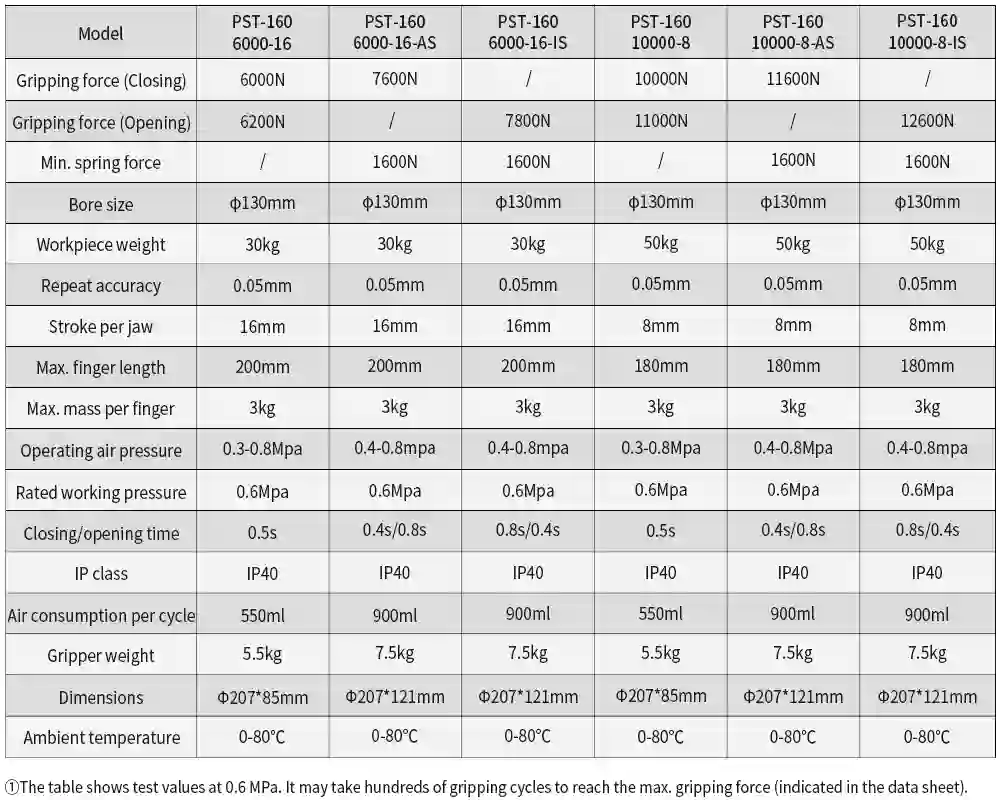

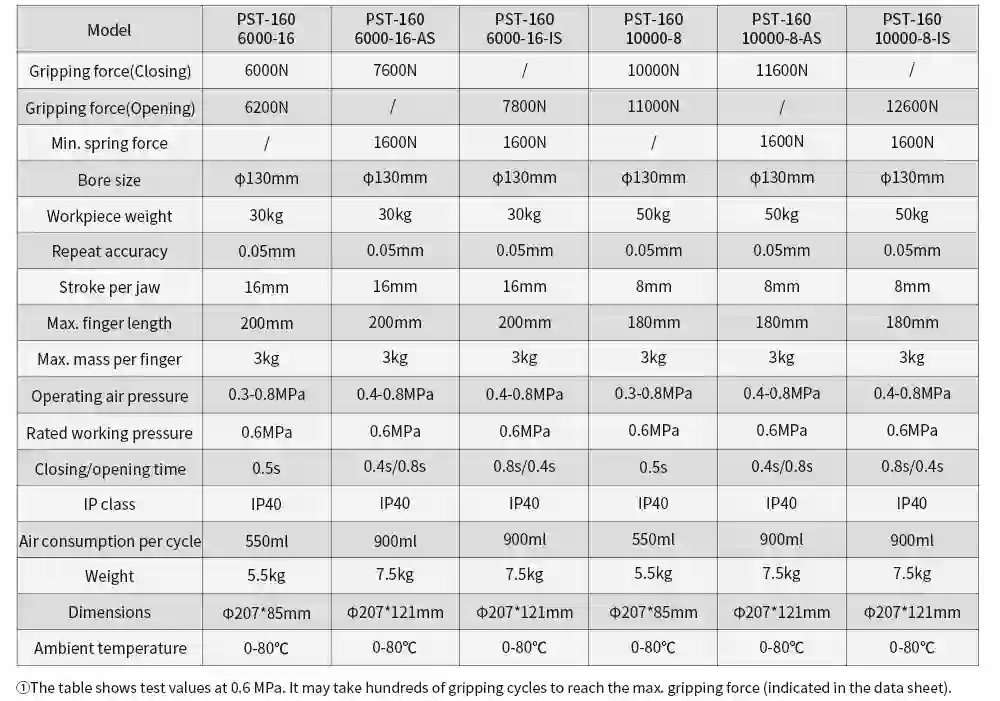

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)


Centric grippers
