<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PST-200</i></div>




PST-200 centric gripper

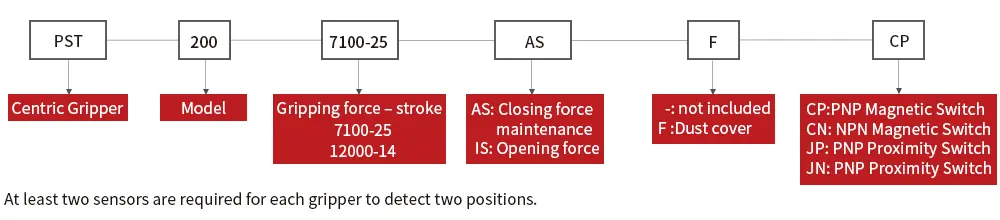

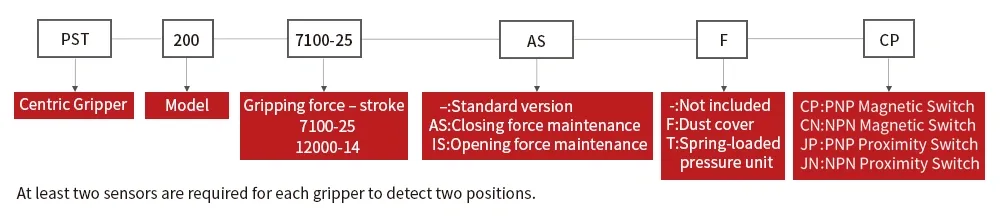

SELECTION





PRODUCT PARAMETERS



Gripping force (Closing)：7100N/14200N

Gripping force (Opening)：7500N/15200N

Stroke per jaw：25mm/14mm

Workpiece weight ：35kg~60kg

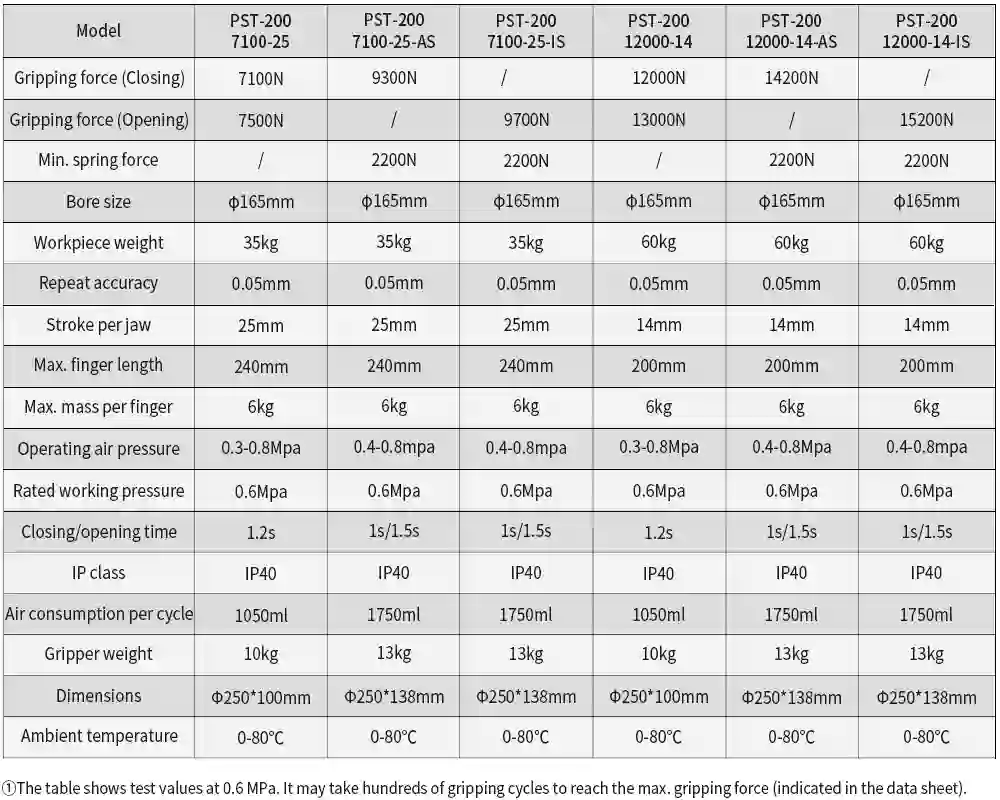

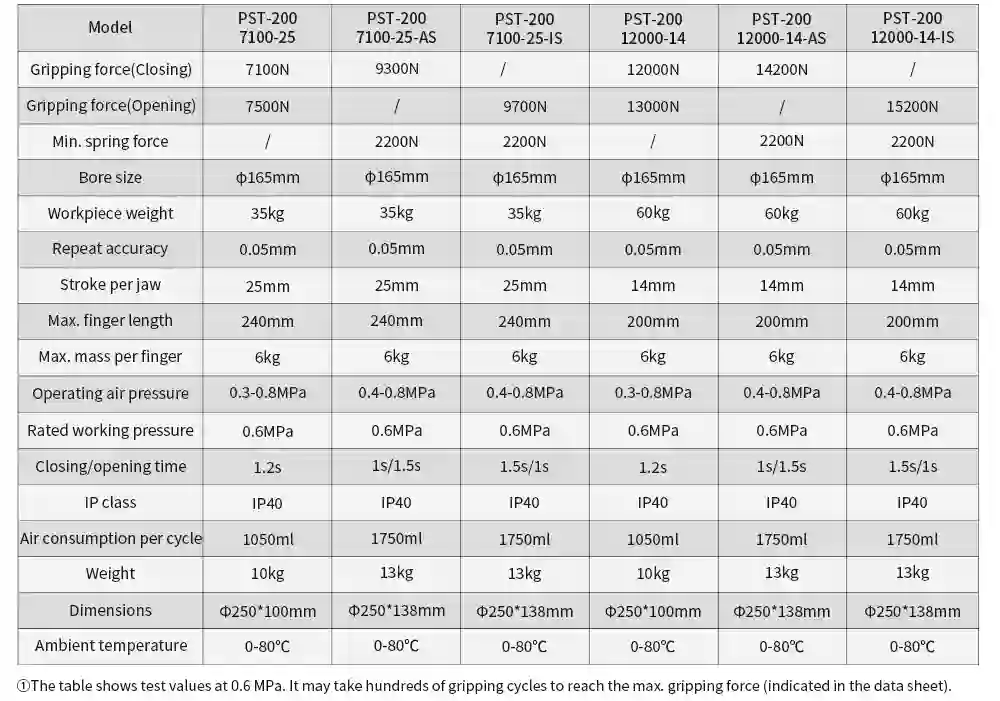

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)

Centric gripper
