<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px;"><i>PST-240</i></div>




PST-240 centric gripper

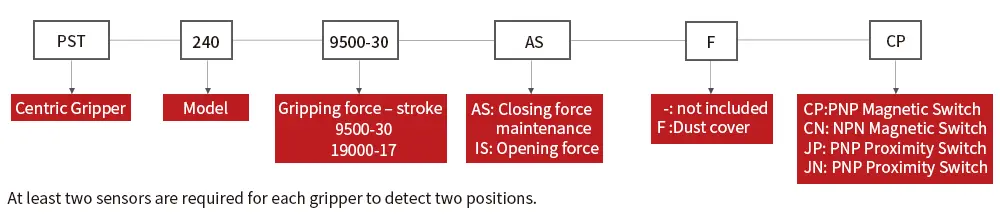

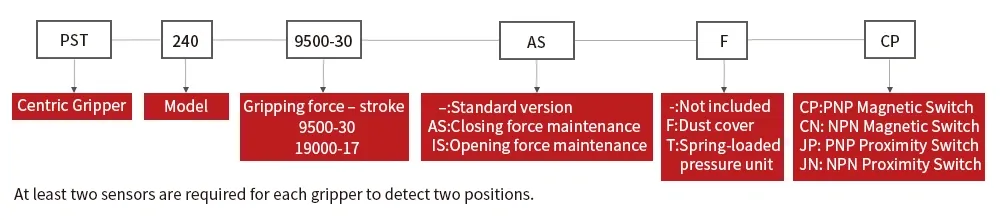

SELECTION





PRODUCT PARAMETERS



Gripping force (Closing)：9500N/22700N

Gripping force (Opening)：10000N/23700N

Stroke per jaw：30mm/17mm

Workpiece weight ：50kg~100kg

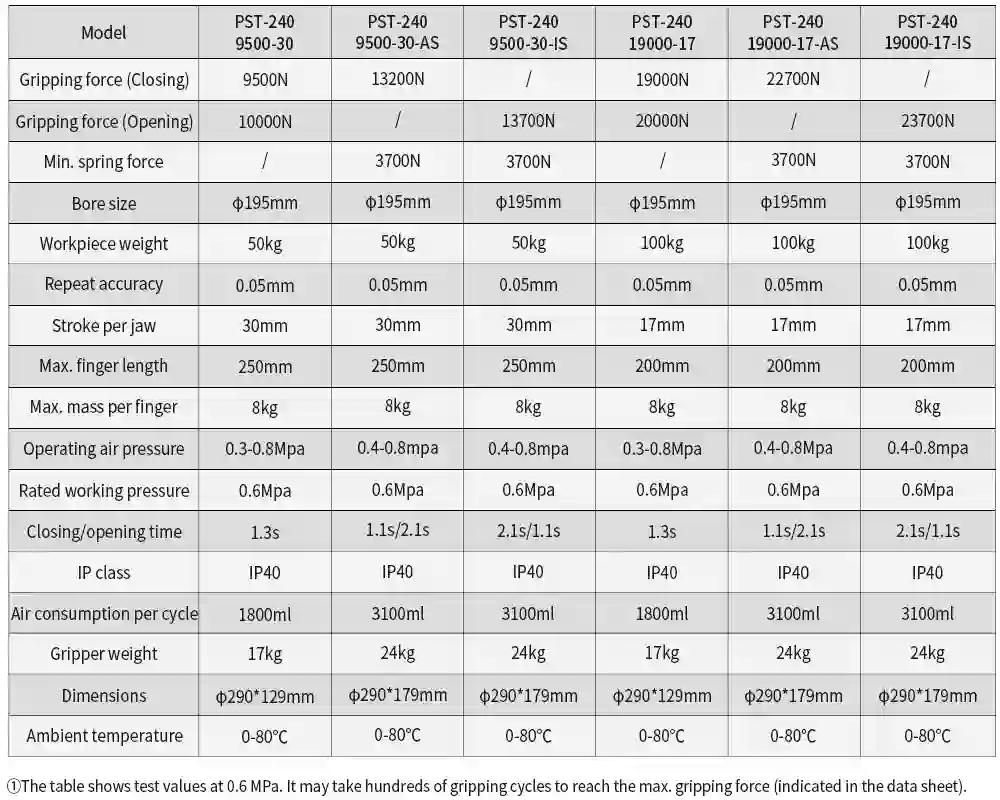

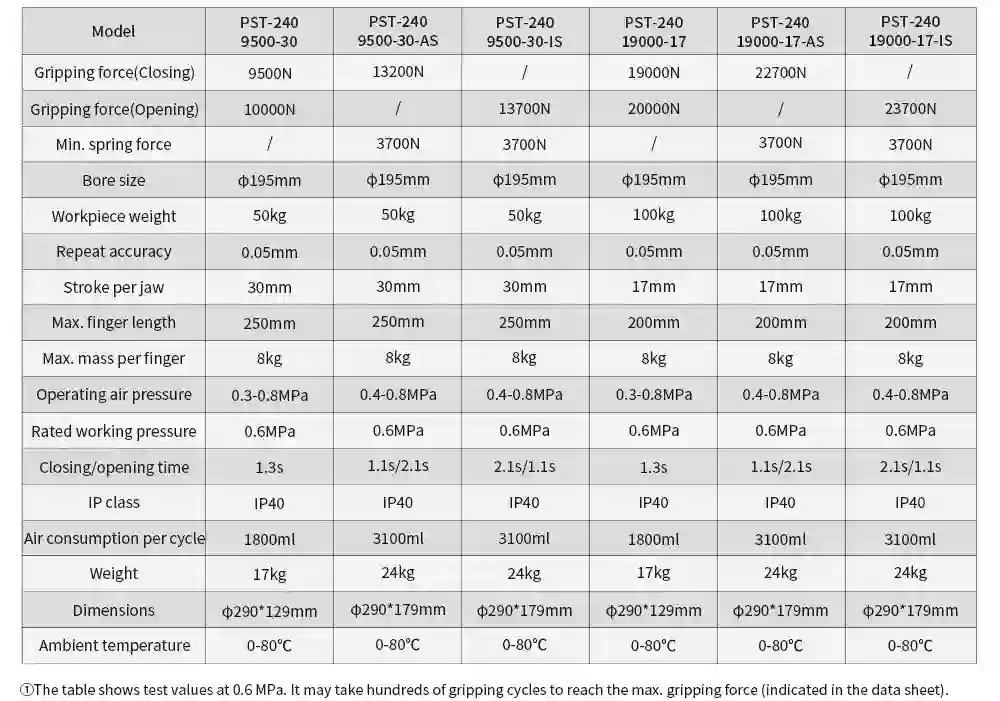

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)

Centric gripper
