<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>PST-64</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PST-64 centric grippers

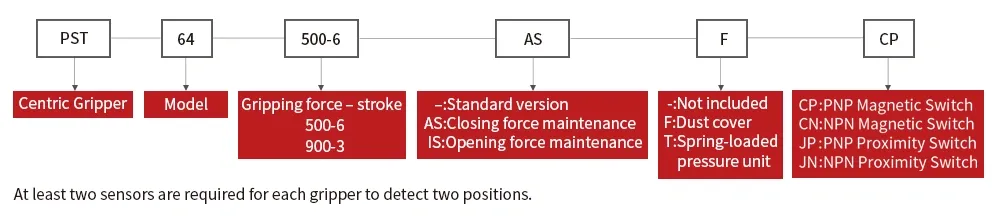

SELECTION





PRODUCT PARAMETERS



Gripping force (Closing)：500N/1050N

Gripping force (Opening)：550N/1150N

Stroke per jaw：6mm/3mm

Workpiece weight ：2.6kg~4kg

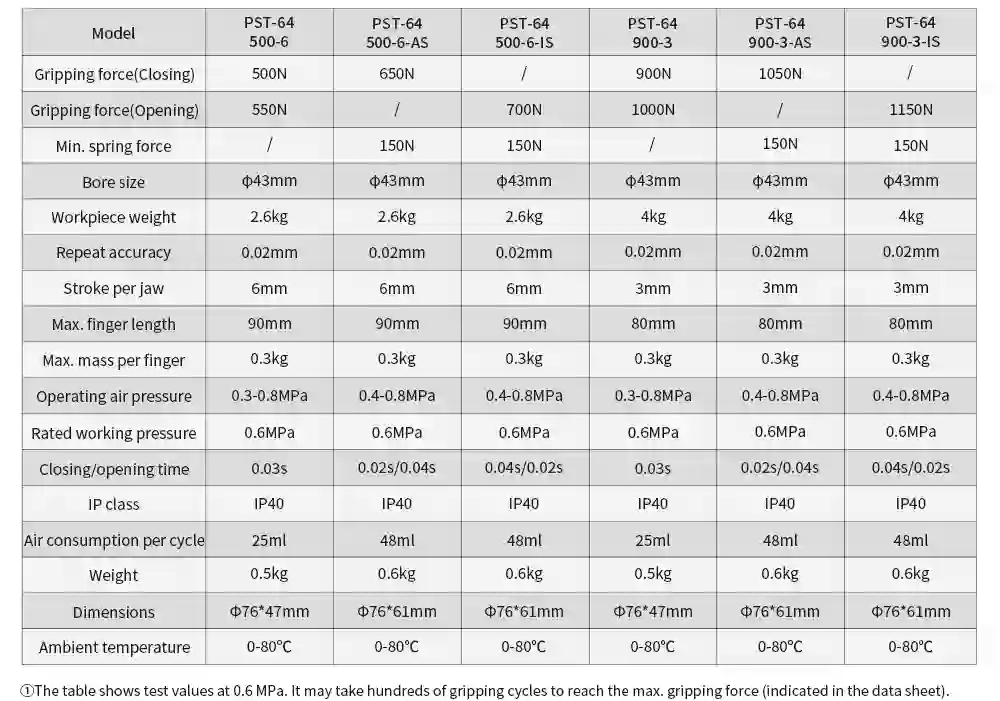

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)


Centric grippers
