<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>PST-80</i></div>

PRODUCT SHOW

PRODUCT STRUCTURE




PST-80 centric grippers

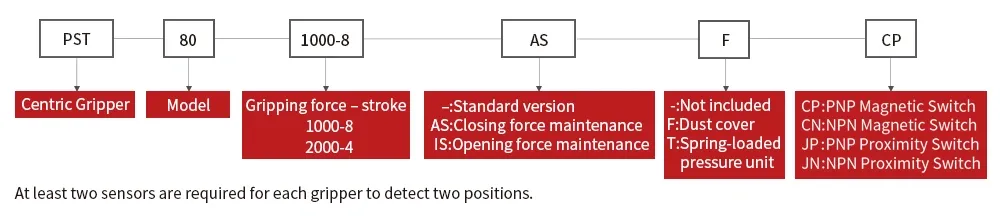

SELECTION

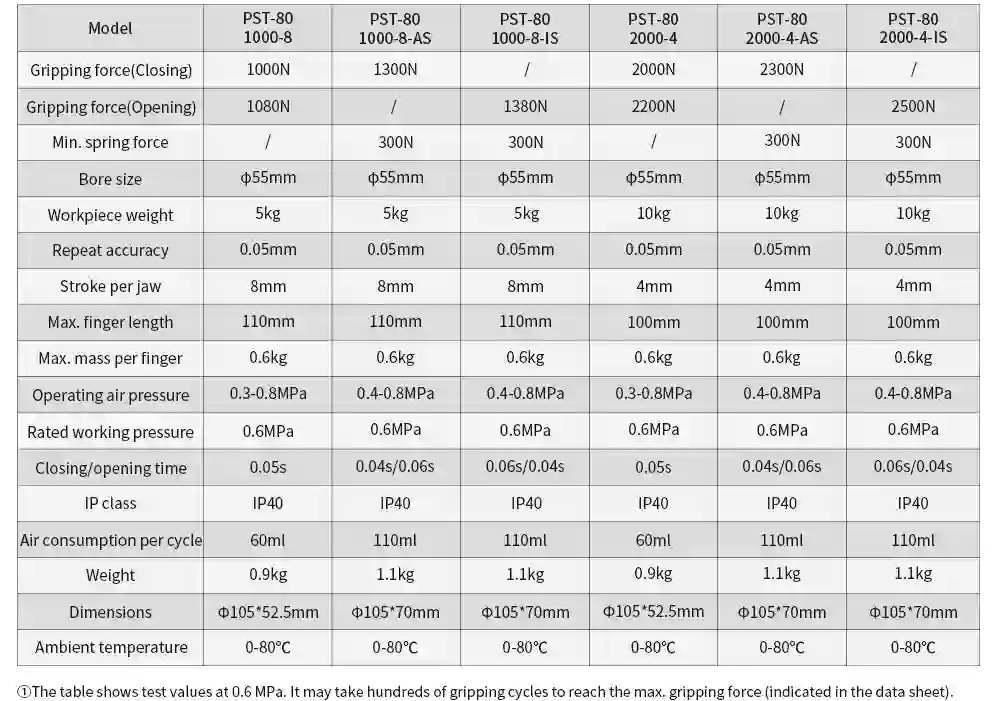

PRODUCT PARAMETERS



Gripping force (Closing)：1000N/2300N

Gripping force (Opening)：1080N/2500N

Stroke per jaw：8mm/4mm

Workpiece weight ：5kg~10kg

Specification parameters



①Spring-Loaded Pressure Unit (optional)

②Dustproof device (optional)

③Gripper

④Magnetic Switch (Optional PNP/NPN)

⑤Gripping force maintenance version (optional)

⑥Proximity Switch (Optional PNP/NPN)


Centric grippers
