<div style="font-size:64px;font-weight:bold;text-shadow: #FFFFFF 2px 2px 3px"><i>TY Handheld Clamp</i></div>




TY Clamp

thumbnail_TY 206x165.webp

TY 206x165.webp

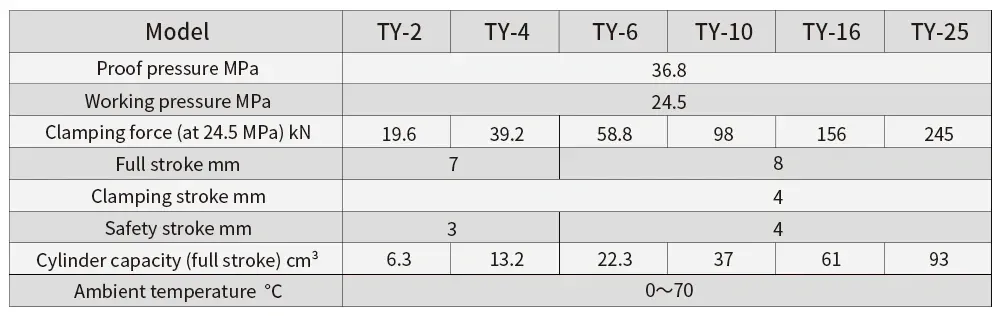

Specification

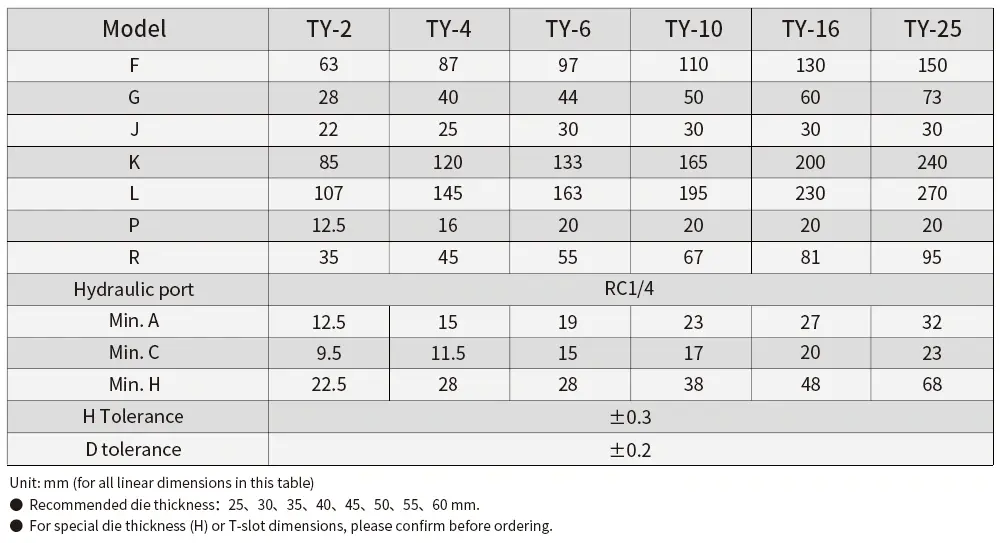

Dimensions

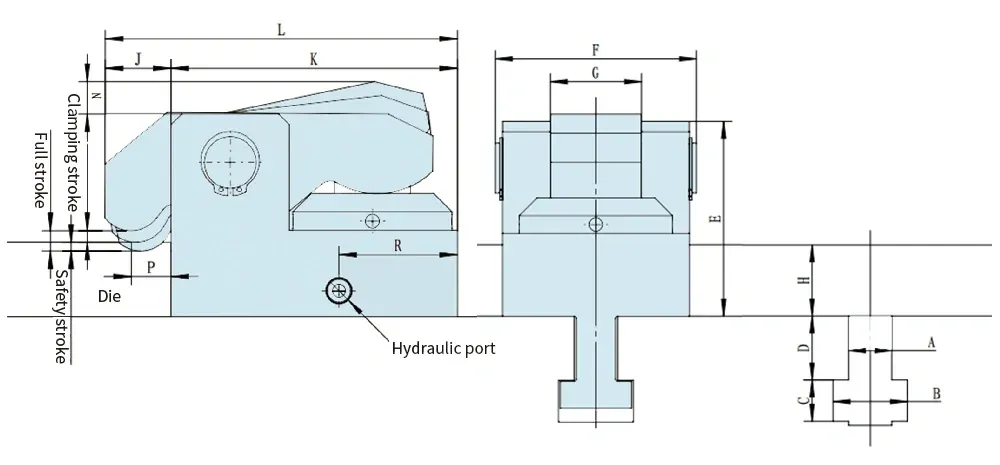

Installation Dimensions

thumbnail_TY 500x500.webp

TY 500x500.webp

Link clamp that slides manually along the T-slot.
Suitable for dies without a U groove in the clamping section

Advantages: Lightweight, high clamping force, rapid clamping, space-saving, stable and reliable.

Application Requirements: Die edge without "U" groove; press slide and bolster with T-slots.
